| Macbor's profilation of this bike |
| MACBOR has created, with XC515 R, a true great motorcycle on scale, for the young riders whom love to learn to lead with gearbox engine without no type of limitation. |
| General moped information |
|---|

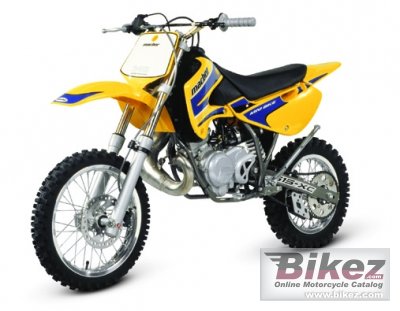

| Model: | Macbor XC512 R 6V |
| Year: | 2009 |
| Category: | Minibike, cross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 50.0 ccm (3.05 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 39.0 x 41.8 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor. Dell´Orto |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | Electronic |
| Lubrication system: | Mixture 2% |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multidisk |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Steel tube |
| Front suspension: | Hydraulic |
| Rear suspension: | Hydraulic shock absorber |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Seat height: | 740 mm (29.1 inches) If adjustable, lowest setting. |
| Overall length: | 1580 mm (62.2 inches) |
| Wheelbase: | 1110 mm (43.7 inches) |
| Fuel capacity: | 3.25 litres (0.86 gallons) |
| Other specifications |
|---|
| Color options: | Yellow |
| Starter: | Kick |
| Comments: | Wheels 14´-12´. Intended for children. |
