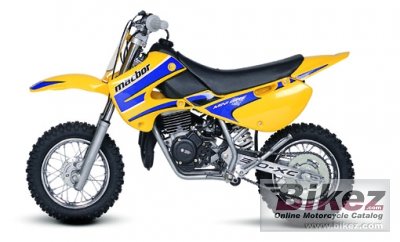

2009 Macbor XC510 S

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds
Tip a friend
List related bikes

Macbor's profilation of this bike

The XC510 S is the motorcycle for smallest.

General moped information
Model:	Macbor XC510 S
Year:	2009
Category:	Minibike, cross
Rating:	Do you know this bike? Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:	49.82 ccm (3.04 cubic inches)
Engine type:	Single cylinder, two-stroke
Bore x stroke:	39.0 x 41.7 mm (1.5 x 1.6 inches)
Fuel system:	Carburettor
Fuel control:	Single Overhead Cams (SOHC)
Ignition:	Electronic
Cooling system:	Air
Gearbox:	Automatic
Transmission type, final drive:	Chain
Clutch:	Automatic
Chassis, suspension, brakes and wheels
Frame type:	Steel pipe
Front suspension:	Mechanical fork
Rear suspension:	Single shock absorber
Front brakes:	Expanding brake (drum brake)
Rear brakes:	Expanding brake (drum brake)
Physical measures and capacities
Seat height:	580 mm (22.8 inches) If adjustable, lowest setting.
Overall length:	1,270 mm (50.0 inches)
Wheelbase:	900 mm (35.4 inches)
Fuel capacity:	3.25 litres (0.86 gallons)
Other specifications
Color options:	Yellow/blue
Starter:	Kick
Comments:	10 inch wheels. Intened for childer 4-9 years old.
