| Macbor's profilation of this bike |
| The XC510 Racing integrates 12´ and 10´ wheels and its ´great´ framework allows you all type of jumps and layouts. |
| General moped information |
|---|

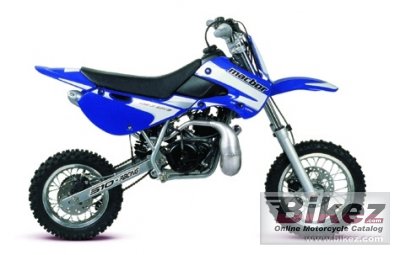

| Model: | Macbor XC510 Racing |
| Year: | 2009 |
| Category: | Minibike, cross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 9.00 HP (6.6 kW)) |
| Bore x stroke: | 39.0 x 41.8 mm (1.5 x 1.6 inches) |
| Ignition: | Electronic |
| Lubrication system: | 2% mixture |
| Cooling system: | Liquid |
| Gearbox: | 1-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multidisk |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Hydraulic fork |
| Front wheel travel: | 7 mm (0.3 inches) |
| Rear suspension: | Gas monoshock absorber |
| Rear wheel travel: | 8 mm (0.3 inches) |
| Front brakes: | Single disc |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Seat height: | 700 mm (27.6 inches) If adjustable, lowest setting. |
| Overall length: | 1,430 mm (56.3 inches) |
| Wheelbase: | 1,035 mm (40.8 inches) |
| Fuel capacity: | 3.25 litres (0.86 gallons) |
| Other specifications |
|---|
| Color options: | Blue/white |
| Starter: | Kick |
| Comments: | Wheels 10´-10´. Intended for children. |
