| Macbor's profilation of this bike |
| CX50 is a quad apt for all type of drivers because of its studied dimensions, from youngest (as of the 8 years old already it is possible to be taken), to the adults of bigger stature. |
|
General moped information |
|
Model name
|

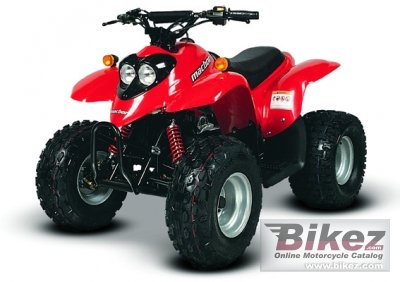

Macbor ATV CX 50 |
|
Year
|
2009 |
|
Category
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.0 ccm (2.99 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power
|
9.0 HP (6.6 kW)) |
|
Bore x stroke
|
40.0 x 39.2 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Mikuni AM7 |
|
Ignition
|
Electronic |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double wishbone |
|
Rear suspension
|
Swing arm |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Expanding brake (drum brake). Optional disc |
|
Physical measures and capacities |
|
Overall height
|
953 mm (37.5 inches) |
|
Overall length
|
1273 mm (50.1 inches) |
|
Overall width
|
803 mm (31.6 inches) |
|
Fuel capacity
|
4.99 litres (1.32 US gallons) |
|
Other specifications |
|
Color options
|
Red, blue, yellow |
|
Starter
|
Kick |
