| Macbor's profilation of this bike |
| This is the ATV for those who want to feel new sensations with maximum performance on all terrains. |
|
General information |
|
Model name
|

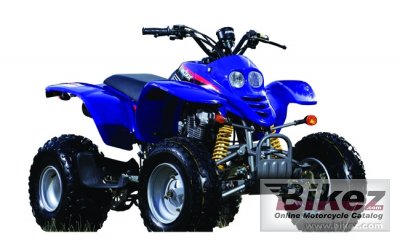

Macbor ATV CX 200 |
|
Year model
|
2009 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
164.2 ccm (10.02 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
65.0 x 49.5 mm (2.6 x 2.0 inches) |
|
Fuel system
|
Carburettor. Keihin |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Double wishbone |
|
Rear suspension
|
Swing arm |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
155.6 kg (343.0 pounds) |
|
Overall height
|
770 mm (30.3 inches) |
|
Overall length
|
1610 mm (63.4 inches) |
|
Overall width
|
1034 mm (40.7 inches) |
|
Fuel capacity
|
8.02 litres (2.12 US gallons) |
|
Other specifications |
|
Color options
|
Red, blue |
|
Starter
|
Electric |
