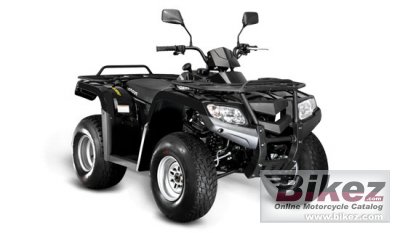

Loncin LX200ATV-M Storm 20132013 Loncin LX200ATV-M Storm specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Motorcycle name | Loncin LX200ATV-M Storm |
| Year of manufacture | 2013 |
| Type | ATV |
| Rating | 2.9 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Engine size | 176.0 ccm (10.74 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Engine details | Reversal gear and balance shaft |
| Output | 12.1 HP (8.8 kW)) @ 8500 RPM |
| Torque | 13.0 Nm (1.3 kgf-m or 9.6 ft.lbs) @ 6000 RPM |
| Top speed | 65.0 km/h (40.4 mph) |
| Compression | 9.5:1 |
| Bore x stroke | 62.0 x 58.0 mm (2.4 x 2.3 inches) |
| Fuel system | Carburettor |
| Ignition | C.D.I |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Driveline | Dimensions and Weight |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel |
| Front tire | 22/7-10 |
| Rear tire | 22/10-10 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Wheels | Front tyre size |
| Physical measures and capacities | |
| Dry weight | 208.0 kg (458.6 pounds) |
| Power/weight ratio | 0.0582 HP/kg |
| Seat height | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall length | 1890 mm (74.4 inches) |
| Overall width | 810 mm (31.9 inches) |
| Ground clearance | 150 mm (5.9 inches) |
| Wheelbase | 1160 mm (45.7 inches) |
| Fuel capacity | 12.00 litres (3.17 US gallons) |
| Other specifications | |
| Color options | Red, black, blue |
| Starter | Electric |
| Instruments | Digital |
| Electrical | 12V 9AH battery. |
| Comments | Chinese made ATV. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 13 Loncin LX200ATV-M Storm discussion group or the general Loncin discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
