Loncin LX110ATV-M Panther 20132013 Loncin LX110ATV-M Panther specifications, pictures, reviews and rating |

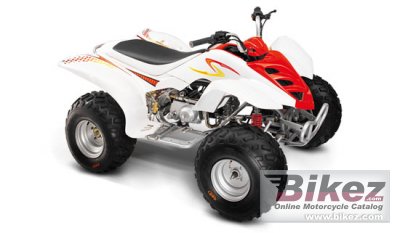

 2013 Loncin LX110ATV-M Panther. Picture credits - Loncin. Submit more pictures. |
|
| General information | |
|---|---|
| Model name | Loncin LX110ATV-M Panther |
| Year model | 2013 |
| Type | ATV |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 107.0 ccm (6.53 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Effect | 7.4 HP (5.4 kW)) @ 8500 RPM |
| Torque | 6.5 Nm (0.7 kgf-m or 4.8 ft.lbs) @ 5500 RPM |
| Top speed | 50.0 km/h (31.1 mph) |
| Compression | 9.1:1 |
| Bore x stroke | 52.4 x 58.0 mm (2.1 x 2.3 inches) |
| Fuel system | Carburettor |
| Ignition | C.D.I |
| Cooling system | Air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel |
| Front tire | 19/7-8 |
| Rear tire | 18/10-8 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 124.0 kg (273.4 pounds) |
| Power/weight ratio | 0.0597 HP/kg |
| Seat height | 660 mm (26.0 inches) If adjustable, lowest setting. |
| Overall length | 1490 mm (58.7 inches) |
| Overall width | 870 mm (34.3 inches) |
| Ground clearance | 110 mm (4.3 inches) |
| Wheelbase | 1025 mm (40.4 inches) |
| Fuel capacity | 7.80 litres (2.06 US gallons) |
| Other specifications | |
| Color options | Red, blue, white |
| Starter | Electric |
| Electrical | 12V 7AH battery. |
| Comments | Chinese made sports ATV. |
