| LML's profilation of this bike |
| Star 4S Classic is pure beauty, to drive all day without ever stopping. Retro style and advanced technology, combined with the manual gearbox, exciting colors, re-designed seats and the new instrument panel make this scooter a true timeless classics. |
|
General information |
|
Model
|

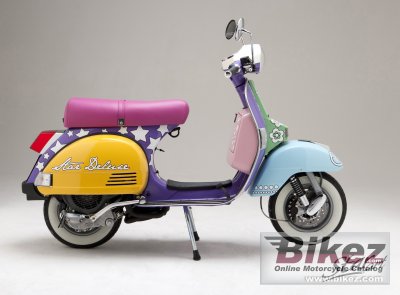

LML Star 4S 125 Classic |
|
Year model
|
2012 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.9 ccm (7.62 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Effect
|
7.8 HP (5.7 kW)) @ 6000 RPM |
|
Torque
|
9.2 Nm (0.9 kgf-m or 6.7 ft.lbs) @ 5000 RPM |
|
Bore x stroke
|
52.4 x 57.8 mm (2.1 x 2.3 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. Keihin PB 18 |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
4-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Mixed structure with chassis and tubes in steel. |
|
Front suspension
|
Swing-arm, helical spring an hydraulic dampers double effect |
|
Rear suspension
|
Engine as swing arm, helical spring an hydraulic dampers double effect |
|
Front tire
|
3.50-10 |
|
Rear tire
|
3.50-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Diameter
|
150 mm (5.9 inches) |
|
Wheels
|
Modular pressed steel |
|
Physical measures and capacities |
|
Dry weight
|
121.0 kg (266.8 pounds) |
|
Power/weight ratio
|
0.0647 HP/kg |
|
Overall height
|
1110 mm (43.7 inches) |
|
Overall length
|
1760 mm (69.3 inches) |
|
Overall width
|
695 mm (27.4 inches) |
|
Wheelbase
|
1235 mm (48.6 inches) |
|
Fuel capacity
|
5.50 litres (1.45 US gallons) |
|
Reserve fuel capacity
|
1.00 litres (0.26 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Comments
|
LML is an abbreviation of Lohia Machines Limited in India. Sold in Europe. |
