| Linhai's profilation of this bike |
| These high wheel scooters are practical and functional for everyday use as well as being fuel efficient. |
|
General information |
|
Model name
|

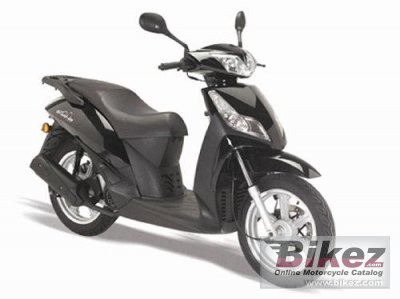

Linhai Drive In 125 |
|
Year model
|
2010 |
|
Type
|
Scooter |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.7 ccm (7.61 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Bore x stroke
|
52.4 x 57.7 mm (2.1 x 2.3 inches) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Automatic |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic fork |
|
Rear suspension
|
Adjustable hydraulic shock |
|
Front tire
|
100/80-16 |
|
Rear tire
|
100/80-16 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
120.0 kg (264.6 pounds) |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2114 mm (83.2 inches) |
|
Wheelbase
|
1435 mm (56.5 inches) |
|
Fuel capacity
|
5.50 litres (1.45 US gallons) |
|
Other specifications |
|
Color options
|
Black, gray |
|
Starter
|
Electric & kick |
