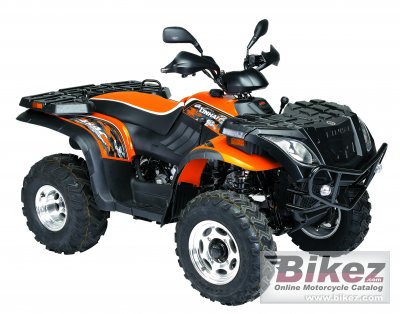

Linhai ATV Muddy 300 20102010 Linhai ATV Muddy 300 specifications, pictures, reviews and rating |
| Linhai's profilation of this bike |
| The MUDDY line-up features two utility versions, 2x4 wheel drive, and 4x4 wheel drive. The front body works are changed with a new plastic front end with a trunk, new head lights and bumps; new instrument panel at the center of the handle bar including a completely new digital meter. |
| General information | |
|---|---|
| Model | Linhai ATV Muddy 300 |
| Year | 2010 |
| Category | ATV |
| Rating | 3.7 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 275.0 ccm (16.78 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Compression | 9.0:1 |
| Bore x stroke | 72.5 x 66.8 mm (2.9 x 2.6 inches) |
| Fuel system | Carburettor |
| Fuel control | Single Overhead Cams (SOHC) |
| Ignition | Electronic T.D.I. |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Clutch | Automatic |
| Exhaust system | Euro 2 |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Hydraulic fork |
| Rear suspension | Double hydraulic shock |
| Front tire | 24/8-12 |
| Rear tire | 24/11-10 |
| Front brakes | Single disc |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 300.0 kg (661.4 pounds) |
| Overall height | 1170 mm (46.1 inches) |
| Overall length | 2096 mm (82.5 inches) |
| Overall width | 1170 mm (46.1 inches) |
| Ground clearance | 183 mm (7.2 inches) |
| Wheelbase | 1265 mm (49.8 inches) |
| Fuel capacity | 14.10 litres (3.73 US gallons) |
| Other specifications | |
| Color options | Orange, black, yellow, red, apple green |
| Starter | Electric & kick |
| Comments | Available with 4x4 or 4x2. Drive, low, neutral, reverse. |
