| Leonhardt's profilation of this bike |

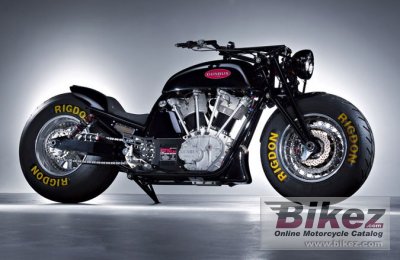

| Just a look at this massive, 410 cubic inches, two-cylinder V-type engine in a standing position makes you feel the huge elemental force resting in this fascinating aggregate. |
|
General information |
|
Model name
|
Leonhardt Gunbus 410 |
|
Year
|
2012 |
|
Category
|
Sport |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
6728.0 ccm (410.54 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Engine details
|
45° cylinder angle |
|
Torque
|
710.0 Nm (72.4 kgf-m or 523.7 ft.lbs) @ 1900 RPM |
|
Compression
|
8.7:1 |
|
Bore x stroke
|
176.0 x 156.0 mm (6.9 x 6.1 inches) |
|
Fuel system
|
Injection. 2 single throttle valves; 70 mm diameter. Sequential fuel injection; lambda-controlled |
|
Ignition
|
Dual ignition |
|
Lubrication system
|
Dry sump lubrication |
|
Gearbox
|
3-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
3-disk, sintered metal dry clutch |
|
Driveline
|
Primary driving gear: duplex roller chain, 1´x 11/16´. Secondary driving gear: single roller chain, 1´x 11/16´. |
|
Emission details
|
Lambda-controlled. Regulated catalytic converter. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube frame; 25CrMo4; TIG welding |
|
Front suspension
|
Steel tube trapezoidal fork; 25CrMo4 |
|
Front brakes
|
Double disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
310 mm (12.2 inches) |
|
Wheels
|
Front: 38” diameter; 11” width. Manufacturer: RIGDON, Germany |
|
Physical measures and capacities |
|
Dry weight
|
650.0 kg (1,433.0 pounds) |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1480 mm (58.3 inches) |
|
Overall length
|
3450 mm (135.8 inches) |
|
Wheelbase
|
2410 mm (94.9 inches) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
German brand. |
