General moped information |
|
Motorcycle name
|

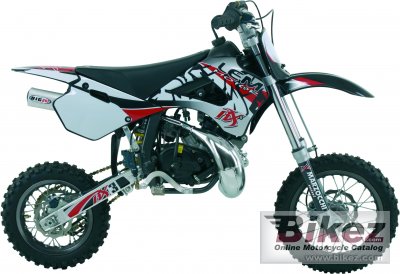

Lem RX3 Racing |
|
Model year
|
2011 |
|
Category
|
Minibike, cross |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
49.8 ccm (3.04 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Engine details
|
Morini S6-C engine. Aluminium cylinder. 4 petal carbon fibre reed valves. |
|
Power output
|
12.8 HP (9.3 kW)) @ 13500 RPM |
|
Bore x stroke
|
39.1 x 41.7 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHBG 19 BS |
|
Ignition
|
CDI |
|
Lubrication system
|
3% mixture |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Centrifugal wet clutch |
|
Driveline
|
CVT |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Steel tube, aluminium swing arm |
|
Front suspension
|
Hydraulic fork |
|
Front wheel travel
|
185 mm (7.3 inches) |
|
Rear suspension
|
Hydraulic monoshock |
|
Rear wheel travel
|
48 mm (1.9 inches) |
|
Front tire
|
2.50-12 |
|
Rear tire
|
2.75-10 |
|
Front brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Rear brakes
|
Single disc |
|
Wheels
|
Aluminium rims |
|
Physical measures and capacities |
|
Dry weight
|
42.0 kg (92.6 pounds) |
|
Power/weight ratio
|
0.3048 HP/kg |
|
Seat height
|
675 mm (26.6 inches) If adjustable, lowest setting. |
|
Overall length
|
1360 mm (53.5 inches) |
|
Ground clearance
|
270 mm (10.6 inches) |
|
Wheelbase
|
985 mm (38.8 inches) |
|
Fuel capacity
|
2.01 litres (0.53 US gallons) |
|
Other specifications |
|
Comments
|
Italian brand. |
