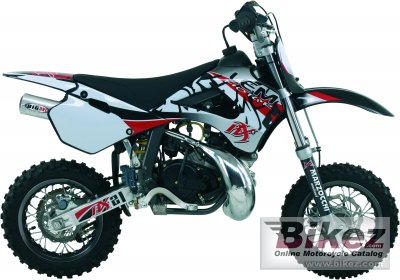

2011 Lem RX2 Racing. Picture credits - Lem. Submit more pictures.

2011 Lem RX2 Racing

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds
Tip a friend
List related bikes

General moped information
Model:	Lem RX2 Racing
Year:	2011
Category:	Minibike, cross
Rating:	66.7 out of 100. Show full rating and compare with other bikes
Engine and transmission
Displacement:	49.80 ccm (3.04 cubic inches)
Engine type:	Single cylinder, two-stroke
Engine details:	Aluminium cylinder
Power:	12.60 HP (9.2 kW)) @ 13500 RPM
Bore x stroke:	39.1 x 41.7 mm (1.5 x 1.6 inches)
Fuel system:	Carburettor. Dell´Orto PHBN 14
Ignition:	CDI
Lubrication system:	3% mixture
Cooling system:	Liquid
Gearbox:	Automatic
Transmission type, final drive:	Chain
Driveline:	CVT
Chassis, suspension, brakes and wheels
Frame type:	Steel tube, aluminium swing arm
Front suspension:	Hydraulic fork
Front wheel travel:	140 mm (5.5 inches)
Rear suspension:	Hydraulic monoshock
Rear wheel travel:	38 mm (1.5 inches)
Front tyre:	2.50-10
Rear tyre:	2.75-10
Front brakes:	Single disc
Front brakes diameter:	220 mm (8.7 inches)
Rear brakes:	Single disc
Wheels:	Spoke wheels
Physical measures and capacities
Dry weight:	41.0 kg (90.4 pounds)
Power/weight ratio:	0.3073 HP/kg
Seat height:	605 mm (23.8 inches) If adjustable, lowest setting.
Overall length:	1,300 mm (51.2 inches)
Ground clearance:	210 mm (8.3 inches)
Wheelbase:	910 mm (35.8 inches)
Fuel capacity:	2.01 litres (0.53 gallons)
Other specifications
Further information
Insurance costs	Get a US insurance quote from Progressive.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 11 Lem RX2 Racing discussion group or the general Lem discussion group.
Related bikes	List related bikes for comparison of specs.
