| General moped information |
|---|

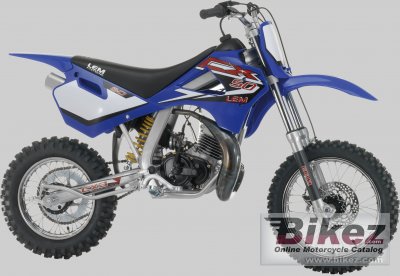

| Model: | Lem Recreational CX3 |
| Year: | 2007 |
| Category: | Enduro / offroad |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.80 ccm (3.04 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 3.20 HP (2.3 kW)) |
| Bore x stroke: | 1.5 x 0.0 mm (0.1 x inches) |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Ignition: | Flywheel magneto with coil |
| Cooling system: | Air |
| Gearbox: | 1-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet clutch |
| Exhaust system: | Expansion with silencer |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Oval steel tube frame |
| Front suspension: | Mechanical front fork |
| Rear suspension: | Hydraulic monoshock |
| Front brakes: | Single disc |
| Front brakes diameter: | 180 mm (7.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 90 mm (3.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 45.4 kg (100.0 pounds) |
| Power/weight ratio: | 0.0706 HP/kg |
| Seat height: | 729 mm (28.7 inches) If adjustable, lowest setting. |
| Overall length: | 1,575 mm (62.0 inches) |
| Ground clearance: | 249 mm (9.8 inches) |
| Wheelbase: | 1,080 mm (42.5 inches) |
| Fuel capacity: | 2.49 litres (0.66 gallons) |
| Other specifications |
|---|
| Color options: | Multicolored |
| Starter: | Electric & kick |
