| General moped information |
|---|

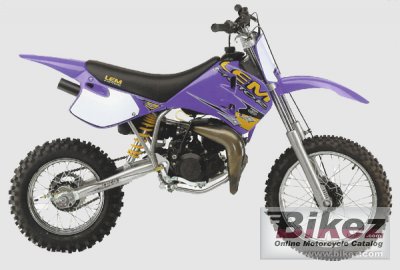

| Model: | Lem R2 |
| Year: | 2006 |
| Category: | Minibike, cross |
| Price as new: | US$ 4550. MSRP depend on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.8 ccm (3.04 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 11.5 HP (8.4 kW)) |
| Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor. Dell´Orto PHBG 14 MS |
| Lubrication system: | Premix |
| Cooling system: | Liquid |
| Gearbox: | 1-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Centrifugal automatic |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | ChroMoly oval perimeter frame |
| Front suspension: | Marzocchi dual hydraulic with aluminum triple clamp |
| Rear suspension: | Paioli SX remote hydraulic monoshock with adjustable comp/rebound |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Expanding brake (drum brake) |
| Physical measures and capacities |
|---|
| Dry weight: | 41.0 kg (90.4 pounds) |
| Power/weight ratio: | 0.2805 HP/kg |
| Seat height: | 610 mm (24.0 inches) If adjustable, lowest setting. |
| Ground clearance: | 279 mm (11.0 inches) |
| Wheelbase: | 914 mm (36.0 inches) |
| Fuel capacity: | 3.00 litres (0.79 gallons) |
| Other specifications |
|---|
| Color options: | Silver |
| Starter: | Kick |
| Comments: | Intended for kids, but racing series. |
