Lem Four X-R 2006

2006 Lem Four X-R specifications, pictures, reviews and rating

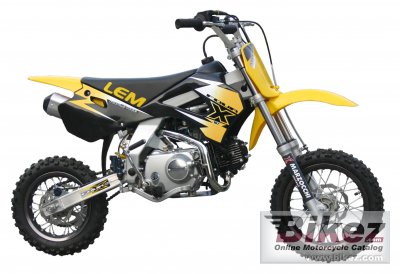

2006 Lem Four X-R. Picture credits - Lem. Submit more pictures.

2006 Lem Four X-R

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
Insurance quotes
Tip a friend
List related bikes

General information
Model:	Lem Four X-R
Year:	2006
Category:	Minibike, cross
Rating:	Do you know this bike? Click here to rate it. We miss 1 vote to show the rating.
Engine and transmission
Displacement:	124.00 ccm (7.57 cubic inches)
Engine type:	Single cylinder, four-stroke
Power:	8.50 HP (6.2 kW))
Bore x stroke:	52.4 x 55.5 mm (2.1 x 2.2 inches)
Valves per cylinder:	2
Fuel system:	Carburettor
Ignition:	CDI
Cooling system:	Air
Gearbox:	4-speed
Transmission type, final drive:	Chain
Chassis, suspension, brakes and wheels
Front tyre:	2.50-12
Rear tyre:	2.75-10
Front brakes:	Single disc
Front brakes diameter:	160 mm (6.3 inches)
Rear brakes:	Expanding brake (drum brake)
Rear brakes diameter:	90 mm (3.5 inches)
Physical measures and capacities
Dry weight:	56.6 kg (124.8 pounds)
Power/weight ratio:	0.1502 HP/kg
Seat height:	700 mm (27.6 inches) If adjustable, lowest setting.
Overall length:	1,460 mm (57.5 inches)
Wheelbase:	1,060 mm (41.7 inches)
