| General moped information |
|---|

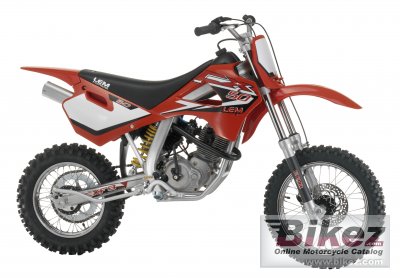

| Model: | Lem CXF 3 |
| Year: | 2006 |
| Category: | Minibike, cross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.9 ccm (3.05 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 4.0 HP (2.9 kW)) @ 9600 RPM |
| Bore x stroke: | 39.0 x 41.8 mm (1.5 x 1.6 inches) |
| Valves per cylinder: | 2 |
| Fuel system: | Carburettor. Dell´Orto PHVA 17 |
| Cooling system: | Air |
Transmission type,
final drive: | Chain |
| Chassis, suspension, brakes and wheels |
|---|
| Front tyre: | 2.50-10 |
| Rear tyre: | 2.75-10 |
| Front brakes: | Single disc |
| Diameter: | 160 mm (6.3 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Diameter: | 90 mm (3.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 45.0 kg (99.2 pounds) |
| Power/weight ratio: | 0.0889 HP/kg |
| Seat height: | 730 mm (28.7 inches) If adjustable, lowest setting. |
| Overall length: | 1575 mm (62.0 inches) |
| Ground clearance: | 250 mm (9.8 inches) |
| Wheelbase: | 1080 mm (42.5 inches) |
| Other specifications |
|---|
| Starter: | Kick |
| Further information |
|---|
