Lem CXF 2 20062006 Lem CXF 2 specifications, pictures, reviews and rating |

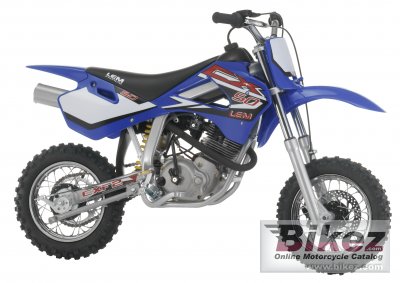

![]() 2006 Lem CXF 2. Picture credits - Lem. Submit more pictures.
|
General moped information | |
---|---|
Model: | Lem CXF 2 |
Year: | 2006 |
Category: | Minibike, cross |
Rating: | Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
Engine and transmission | |
Displacement: | 49.9 ccm (3.05 cubic inches) |
Engine type: | Single cylinder, four-stroke |
Power: | 4.0 HP (2.9 kW)) @ 9600 RPM |
Torque: | 1.6 Nm (0.2 kgf-m or 1.2 ft.lbs) |
Bore x stroke: | 39.0 x 41.8 mm (1.5 x 1.6 inches) |
Fuel system: | Carburettor. Dell“Orto PHVA 17 |
Lubrication system: | 3% mixture |
Cooling system: | Air |
Gearbox: | Automatic |
Transmission type, final drive: | Chain |
Chassis, suspension, brakes and wheels | |
Frame type: | Steel |
Front tyre: | 2.50-10 |
Rear tyre: | 2.75-10 |
Front brakes: | Single disc |
Diameter: | 160 mm (6.3 inches) |
Rear brakes: | Expanding brake (drum brake) |
Diameter: | 90 mm (3.5 inches) |
Physical measures and capacities | |
Dry weight: | 32.0 kg (70.5 pounds) |
Power/weight ratio: | 0.1250 HP/kg |
Seat height: | 605 mm (23.8 inches) If adjustable, lowest setting. |
Overall length: | 1300 mm (51.2 inches) |
Other specifications | |
Starter: | Kick |
