Lem CX2 2006

2006 Lem CX2 specifications, pictures, reviews and rating

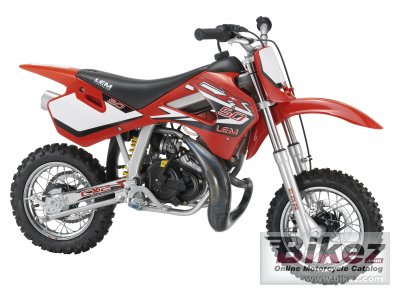

2006 Lem CX2. Picture credits - Lem. Submit more pictures.

General moped information
Model:	Lem CX2
Year:	2006
Category:	Minibike, cross
Rating:	Do you know this bike? Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:	49.8 ccm (3.04 cubic inches)
Engine type:	Single cylinder, two-stroke
Power:	3.2 HP (2.3 kW))
Torque:	1.6 Nm (0.2 kgf-m or 1.2 ft.lbs)
Valves per cylinder:	1
Lubrication system:	3% mixture
Cooling system:	Air
Gearbox:	Automatic
Transmission type, final drive:	Chain
Clutch:	Centrifugal wet
Chassis, suspension, brakes and wheels
Frame type:	Oval steel tube
Front brakes:	Single disc
Diameter:	160 mm (6.3 inches)
Rear brakes:	Expanding brake (drum brake)
Diameter:	90 mm (3.5 inches)
Physical measures and capacities
Dry weight:	34.0 kg (75.0 pounds)
Power/weight ratio:	0.0941 HP/kg
Seat height:	605 mm (23.8 inches) If adjustable, lowest setting.
Overall length:	1300 mm (51.2 inches)
Ground clearance:	221 mm (8.7 inches)
Wheelbase:	909 mm (35.8 inches)
Fuel capacity:	2.00 litres (0.53 gallons)
Other specifications
Further information
Insurance costs	Compare US insurance quotes from the nation's top providers.
Finance options	Compare US motorcycle loan quotes from the nation's top providers.
Parts finder	Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 06 Lem CX2 discussion group or the general Lem discussion group.
Related bikes	List related bikes for comparison of specs.
