| Lehman Trikes' profilation of this bike |
| In just days, freedom becomes Threedom, with enhanced stability and far greater carrying capacity. Move your spirit farther and more comfortably. |
|
General information |
|
Model
|

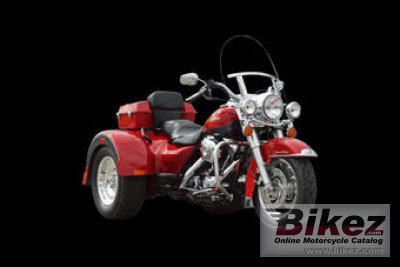

Lehman Trikes Renegade Road King |
|
Model year
|
2010 |
|
Category
|
Touring |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1584.0 ccm (96.66 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Torque
|
131.0 Nm (13.4 kgf-m or 96.6 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
173 mm (6.8 inches) |
|
Front suspension
|
41.3mm telescopic fork |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
485.0 kg (1,069.2 pounds) |
|
Seat height
|
715 mm (28.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2591 mm (102.0 inches) |
|
Overall width
|
1346 mm (53.0 inches) |
|
Ground clearance
|
145 mm (5.7 inches) |
|
Wheelbase
|
1638 mm (64.5 inches) |
|
Fuel capacity
|
22.70 litres (6.00 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Three wheels. Modified Harley-Davidson Road King. |
