| Lehman Trikes' profilation of this bike |

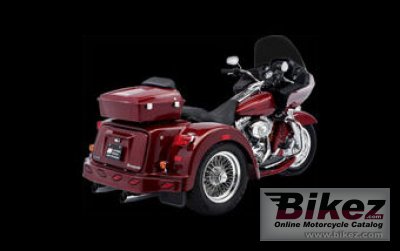

| The Renegade for Touring takes the legendary Harley-Davidson motorcycle and adds a beautifully integrated Lehman Trike conversion. |
|
General information |
|
Motorcycle name
|
Lehman Trikes Renegade Road Glide |
|
Year of manufacture
|
2010 |
|
Type
|
Touring |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
1584.0 ccm (96.66 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Torque
|
125.0 Nm (12.7 kgf-m or 92.2 ft.lbs) @ 3500 RPM |
|
Compression
|
9.2:1 |
|
Bore x stroke
|
95.3 x 111.1 mm (3.8 x 4.4 inches) |
|
Fuel system
|
Injection. Electronic Sequential Port Fuel Injection (ESPFI) |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
9-plate, wet |
|
Fuel consumption
|
5.00 litres/100 km (20.0 km/l or 47.04 mpg) |
|
Greenhouse gases
|
116.0 CO2 g/km. (CO2 - Carbon dioxide emission) |
|
Exhaust system
|
2-1-2 exhaust system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
New mild steel, single spar rigid backbone with |
|
Rake (fork angle)
|
26.0° |
|
Trail
|
173 mm (6.8 inches) |
|
Front suspension
|
41.3mm telescopic fork |
|
Front wheel travel
|
117 mm (4.6 inches) |
|
Rear suspension
|
Air-adjustable |
|
Rear wheel travel
|
76 mm (3.0 inches) |
|
Front tire
|
130/80-B17 |
|
Rear tire
|
180/65-B16 |
|
Front brakes
|
Double disc. Brembo triple-disc brake system |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
455.0 kg (1,003.1 pounds) |
|
Seat height
|
683 mm (26.9 inches) If adjustable, lowest setting. |
|
Overall height
|
1397 mm (55.0 inches) |
|
Overall length
|
2616 mm (103.0 inches) |
|
Overall width
|
1346 mm (53.0 inches) |
|
Ground clearance
|
129 mm (5.1 inches) |
|
Wheelbase
|
1613 mm (63.5 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Three wheels. Trunk volume 142 kg. Modified Harley-Davidson Road Glide. |
