| Lehman Trikes' profilation of this bike |

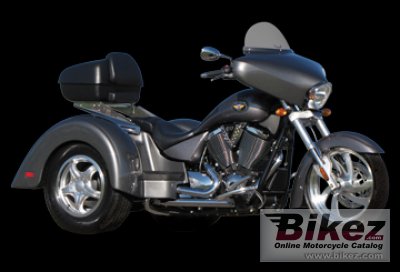

| The PitBoss is the 1st three-wheeled motorcycle to be jointly developed and fully supported by both the Trike and Motorcycle manufacturers. With Victory´s 100 cubic inch Freedom Powertrain and 6-speed True Overdrive transmission the PitBoss delivers phenomenal performance. |
|
General information |
|
Motorcycle name
|
Lehman Trikes PitBoss |
|
Model year
|
2010 |
|
Category
|
Custom / cruiser |
|
Rating
|
3.8 See the detailed rating of design and look, maintenance cost, engine performance, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1638.8 ccm (100.00 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
8.7:1 |
|
Bore x stroke
|
101.0 x 102.0 mm (4.0 x 4.0 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. 45mm throttle bodies |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multi-plate |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
32.8° |
|
Front suspension
|
Inverted cartridge telescopic fork, 43mm diameter, 5.1in/130mm travel |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Single, mono-tube gas,cast aluminum with rising rate linkage , 3.9in/100mm travel, preload adjustable spring |
|
Rear wheel travel
|
100 mm (3.9 inches) |
|
Front tire
|
130/70-B18 |
|
Rear tire
|
180/55-B18 |
|
Front brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Dry weight
|
440.0 kg (970.0 pounds) |
|
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2743 mm (108.0 inches) |
|
Overall width
|
1346 mm (53.0 inches) |
|
Ground clearance
|
147 mm (5.8 inches) |
|
Wheelbase
|
1664 mm (65.5 inches) |
|
Fuel capacity
|
17.03 litres (4.50 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Three wheels. Modified Victory Kingpin. Trunk Volume: 3.6 cu. ft (102 L). A touring variant with a small windshield is available. |
