| Lehman Trikes' profilation of this bike |
| The Monarch II features a vertical lift trunk door, isolastic cushion ride suspension and dual piston linked braking system. The Monarch II is the perfect balance between performance handling and a luxury ride. |
|
General information |
|
Model name
|

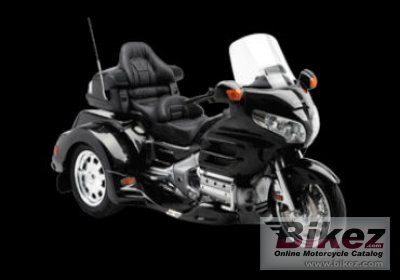

Lehman Trikes Monarch II Gold Wing |
|
Model year
|
2010 |
|
Category
|
Touring |
|
Rating
|
3.9 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
1832.0 ccm (111.79 cubic inches) |
|
Engine type
|
Six cylinder boxer, four-stroke |
|
Bore x stroke
|
74.0 x 71.0 mm (2.9 x 2.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Programmed Fuel Injection (PGM-FI) |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Computer-controlled digital with three-dimensional mapping |
|
Cooling system
|
Liquid |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.2° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
45mm cartridge fork with anti-dive system, 5.5-inch travel |
|
Rear suspension
|
Pro-Arm single-side swingarm with Pro-Link single shock with computer-controlled spring-preload adjustment with two memory presets |
|
Rear wheel travel
|
104 mm (4.1 inches) |
|
Front tire
|
130/70-R18 |
|
Rear tire
|
180/60-R16 |
|
Front brakes
|
Double disc |
|
Diameter
|
296 mm (11.7 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
316 mm (12.4 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
521.0 kg (1,148.6 pounds) |
|
Seat height
|
739 mm (29.1 inches) If adjustable, lowest setting. |
|
Overall length
|
2845 mm (112.0 inches) |
|
Overall width
|
1372 mm (54.0 inches) |
|
Wheelbase
|
1824 mm (71.8 inches) |
|
Fuel capacity
|
24.98 litres (6.60 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Three wheels. Modified Honda GL1800 Gold Wing. Trunk Volume: 4.5 cu.ft. (127 L). |
