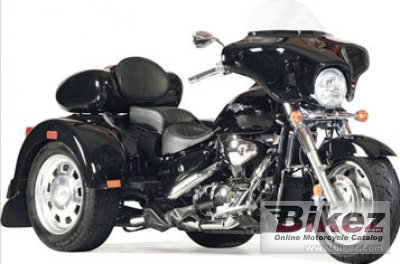

| Lehman Trikes' profilation of this bike |
| There is nothing timid about the 90 cubic inch Jackal. Featuring aggressive power and performance with full touring capabilities. It’s full range of accessories has it leading the pack.
|
|
General information |
|
Model
|
Lehman Trikes Jackal Boulevard |
|
Year
|
2010 |
|
Category
|
Custom / cruiser |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
1462.0 ccm (89.21 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Compression
|
8.5:1 |
|
Bore x stroke
|
96.0 x 101.0 mm (3.8 x 4.0 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Telescopic, coil spring, oil damped |
|
Rear suspension
|
Link type, coil spring, oil damped |
|
Front tire
|
150/80-M16 |
|
Rear tire
|
180/70-M15 |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
454.0 kg (1,000.9 pounds) |
|
Seat height
|
700 mm (27.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2743 mm (108.0 inches) |
|
Overall width
|
1359 mm (53.5 inches) |
|
Ground clearance
|
140 mm (5.5 inches) |
|
Wheelbase
|
1791 mm (70.5 inches) |
|
Fuel capacity
|
14.00 litres (3.70 US gallons) |
|
Other specifications |
|
Comments
|
Three wheels. Modified Suzuki Boulevard C90. Trunk Volume: 5 cu.ft. (142 L). |
