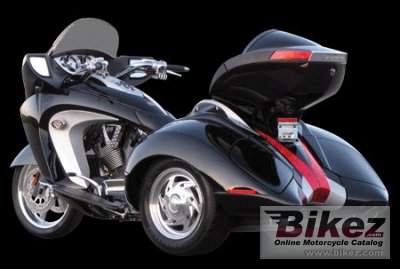

| Lehman Trikes' profilation of this bike |
| Redefining the luxury touring trike, the CrossBow combines American V-Twin character with a next generation approach to style and Design. Experience the best America has to offer in a completely new way, and you may never return home! |
|
General information |
|
Model name
|
Lehman Trikes Crossbow |
|
Year of manufacture
|
2010 |
|
Type
|
Touring |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
1731.0 ccm (105.63 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
97.0 HP (70.8 kW)) |
|
Compression
|
9.4:1 |
|
Bore x stroke
|
101.0 x 108.0 mm (4.0 x 4.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Cooling system
|
Oil & air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Rake (fork angle)
|
29.0° |
|
Trail
|
137 mm (5.4 inches) |
|
Front suspension
|
Conventional telescopic fork |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Single, mono-tube gas,cast aluminum with rising rate linkage |
|
Rear wheel travel
|
100 mm (3.9 inches) |
|
Front tire
|
130/70-18 |
|
Rear tire
|
180/60-16 |
|
Front brakes
|
Double disc. 3-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Rear brakes
|
Single disc. 2-piston caliper |
|
Diameter
|
300 mm (11.8 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
538.0 kg (1,186.1 pounds) |
|
Seat height
|
673 mm (26.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2669 mm (105.1 inches) |
|
Overall width
|
1397 mm (55.0 inches) |
|
Ground clearance
|
148 mm (5.8 inches) |
|
Wheelbase
|
1669 mm (65.7 inches) |
|
Fuel capacity
|
22.71 litres (6.00 US gallons) |
|
Reserve fuel capacity
|
3.78 litres (1.00 US gallons) |
|
Oil capacity
|
4.70 litres (4.97 US quarts) |
|
Other specifications |
|
Starter
|
Electric |
|
Comments
|
Three wheels. Modified Victory Vision. Trunk Volume: 5.0 cu. ft. (142 L). |
