General information |
|
Model name
|

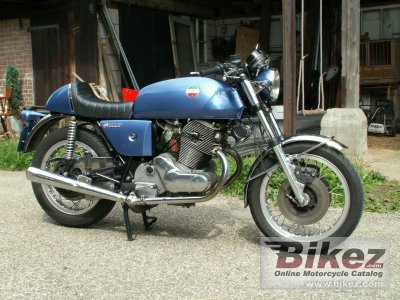

Laverda 750 SF 2 |
|
Year of manufacture
|
1974 |
|
Type
|
Sport |
|
Rating
|
3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
743.9 ccm (45.39 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Output
|
65.0 HP (47.4 kW)) @ 7000 RPM |
|
Maximum RPM
|
7500 |
|
Compression
|
9.7:1 |
|
Bore x stroke
|
80.0 x 74.0 mm (3.1 x 2.9 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Carburettor. dellorto |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
points |
|
Lubrication system
|
wet sump |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
wet plate |
|
Exhaust system
|
dual chrome exhaust |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
steel |
|
Rake (fork angle)
|
28.0° |
|
Trail
|
82 mm (3.2 inches) |
|
Front brakes
|
Double disc |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
215.0 kg (474.0 pounds) |
|
Power/weight ratio
|
0.3023 HP/kg |
|
Seat height
|
790 mm (31.1 inches) If adjustable, lowest setting. |
|
Ground clearance
|
190 mm (7.5 inches) |
|
Wheelbase
|
1452 mm (57.2 inches) |
|
Other specifications |
