General moped information |
|
Model name
|

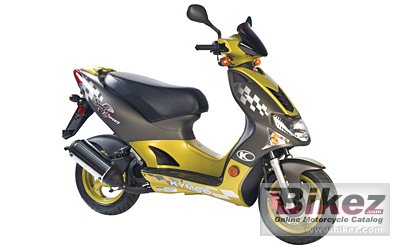

Kymco Super 9 AC |
|
Year model
|
2008 |
|
Type
|
Scooter |
|
Rating
|
3.5 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.4 ccm (3.01 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Effect
|
3.2 HP (2.3 kW)) @ 6500 RPM |
|
Torque
|
4.7 Nm (0.5 kgf-m or 3.5 ft.lbs) @ 6250 RPM |
|
Compression
|
7.2:1 |
|
Bore x stroke
|
39.0 x 41.4 mm (1.5 x 1.6 inches) |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Pine under bone |
|
Front suspension
|
Telescopic fork |
|
Front wheel travel
|
80 mm (3.1 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
45 mm (1.8 inches) |
|
Front tire
|
120/70-12 |
|
Rear tire
|
130/70-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
210 mm (8.3 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
180 mm (7.1 inches) |
|
Physical measures and capacities |
|
Dry weight
|
102.0 kg (224.9 pounds) |
|
Power/weight ratio
|
0.0313 HP/kg |
|
Overall height
|
1190 mm (46.9 inches) |
|
Overall length
|
1850 mm (72.8 inches) |
|
Overall width
|
700 mm (27.6 inches) |
|
Ground clearance
|
160 mm (6.3 inches) |
|
Wheelbase
|
1295 mm (51.0 inches) |
|
Fuel capacity
|
7.00 litres (1.85 US gallons) |
|
Other specifications |
|
Starter
|
Electric & kick |
|
Comments
|
Available with air cooled (A/C) or liquid cooled (L/c)
engines. |
