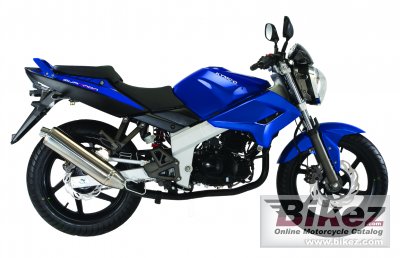

Kymco Quannon Naked 125 20102010 Kymco Quannon Naked 125 specifications, pictures, reviews and rating |
| Kymco's profilation of this bike |
| With racing bike image and focused on the target of build up a brand new model. And design for those people who were tend to have an experience of naked bike but also consider about utility for daily life. |
| General information | |
|---|---|
| Motorcycle name | Kymco Quannon Naked 125 |
| Model year | 2010 |
| Category | Naked bike |
| Rating | 3.3 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 124.1 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 12.9 HP (9.4 kW)) @ 9500 RPM |
| Torque | 9.8 Nm (1.0 kgf-m or 7.2 ft.lbs) @ 8500 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 56.5 x 49.5 mm (2.2 x 1.9 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Ignition | CDI |
| Cooling system | Oil & air |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet plate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Double cradle |
| Front suspension | Telescopic fork |
| Rear suspension | Single swing |
| Front tire | 110/80-17 |
| Rear tire | 140/70-17 |
| Front brakes | Single disc |
| Diameter | 276 mm (10.9 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 132.0 kg (291.0 pounds) |
| Power/weight ratio | 0.0975 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1174 mm (46.2 inches) |
| Overall length | 2057 mm (81.0 inches) |
| Overall width | 783 mm (30.8 inches) |
| Ground clearance | 170 mm (6.7 inches) |
| Wheelbase | 1355 mm (53.3 inches) |
| Fuel capacity | 13.50 litres (3.57 US gallons) |
| Other specifications | |
| Color options | Blue/gray |
| Starter | Electric & kick |
| Comments | Kymco is an abbreviation of Kwang Yang Motor Company in Taiwan. |
