Kymco MXU 700i LE 20132013 Kymco MXU 700i LE specifications, pictures, reviews and rating |

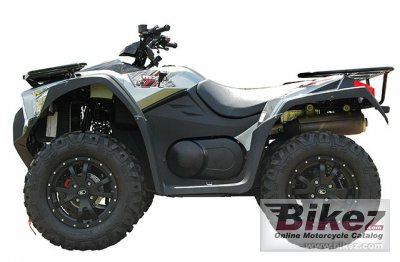

2013 Kymco MXU 700i LE. Image credits - Kymco.
| Kymco's profilation of this bike |
| The MXU 700i LE is based on the all-new MXU 700i, but comes with a host of limited edition amenities that’ll set you apart from the crowd and aid in your utility and recreational endeavors. The MXU 700i LE is available in Limited Edition Metallic Silver Paint. |
| General information | |
|---|---|
| Motorcycle name | Kymco MXU 700i LE |
| Year | 2013 |
| Category | ATV |
| Price as new | US$ 9399. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 695.0 ccm (42.41 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 45.0 HP (32.8 kW)) @ 6500 RPM |
| Torque | 40.0 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 5500 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 102.0 x 85.0 mm (4.0 x 3.3 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. EFI |
| Fuel control | Single Overhead Cams (SOHC) |
| Lubrication system | Wet sump |
| Cooling system | Liquid |
| Gearbox | Automatic |
| Transmission type | Shaft drive (cardan) (final drive) |
| Driveline | CVT Automatic H-L-N-R-P with Differentail Lock |
| Chassis, suspension, brakes and wheels | |
| Frame type | Pipe Under Bone |
| Front suspension | Independent Dual A-Arm |
| Front wheel travel | 157 mm (6.2 inches) |
| Rear suspension | Independent Dual A-Arm |
| Rear wheel travel | 173 mm (6.8 inches) |
| Front tire | 26/9-14 |
| Rear tire | 26/11-14 |
| Front brakes | Double disc. Hydraulic. |
| Rear brakes | Single disc. Hydraulic. |
| Physical measures and capacities | |
| Dry weight | 305.0 kg (672.4 pounds) |
| Power/weight ratio | 0.1475 HP/kg |
| Seat height | 890 mm (35.0 inches) If adjustable, lowest setting. |
| Overall height | 1265 mm (49.8 inches) |
| Overall length | 2210 mm (87.0 inches) |
| Overall width | 1219 mm (48.0 inches) |
| Ground clearance | 274 mm (10.8 inches) |
| Wheelbase | 1293 mm (50.9 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Other specifications | |
| Color options | Metallic Silver |
| Starter | Electric |
| Instruments | Backlit Digital Dash (clock, mph, trip, fuel, odometer) |
| Carrying capacity | Heavy-Duty Front and Rear Equipment Racks |
| Factory warranty | One-Year Limited Factory Warranty |
