| Kymco's profilation of this bike |
| Designed and built to meet the high standards demanded by ATV users, the MXU 700i is motivated by a fuel-injected 695cc engine producing 45 hp, as well as the torque you’ll need to accomplish your utility tasks. |
|
General information |
|
Model
|

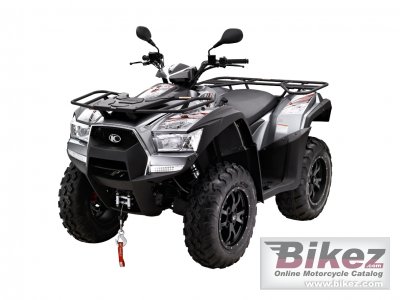

Kymco MXU 700i |
|
Year of manufacture
|
2013 |
|
Type
|
ATV |
| Price as new | US$ 8599. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
695.0 ccm (42.41 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
45.0 HP (32.8 kW)) @ 6500 RPM |
|
Torque
|
40.0 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 5500 RPM |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
102.0 x 85.0 mm (4.0 x 3.3 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. EFI |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
CVT Automatic H-L-N-R-P with Differentail Lock. On Demand 2WD/4WD |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Pipe Under Bone |
|
Front suspension
|
Independent Dual A-Arm |
|
Front wheel travel
|
157 mm (6.2 inches) |
|
Rear suspension
|
Independent Dual A-Arm |
|
Rear wheel travel
|
173 mm (6.8 inches) |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc. Hydraulic. |
|
Rear brakes
|
Single disc. Hydraulic. |
|
Physical measures and capacities |
|
Dry weight
|
356.5 kg (786.0 pounds) |
|
Power/weight ratio
|
0.1262 HP/kg |
|
Seat height
|
890 mm (35.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1265 mm (49.8 inches) |
|
Overall length
|
2210 mm (87.0 inches) |
|
Overall width
|
1219 mm (48.0 inches) |
|
Ground clearance
|
264 mm (10.4 inches) |
|
Wheelbase
|
1293 mm (50.9 inches) |
|
Fuel capacity
|
16.65 litres (4.40 US gallons) |
|
Other specifications |
|
Color options
|
Red, green, black |
|
Starter
|
Electric |
|
Instruments
|
Backlit Digital Dash (clock, mph, trip, fuel, odometer) |
|
Carrying capacity
|
Heavy-Duty Front and Rear Equipment Racks |
|
Factory warranty
|
One-Year Limited Factory Warranty |
