General moped information |
|
Model
|

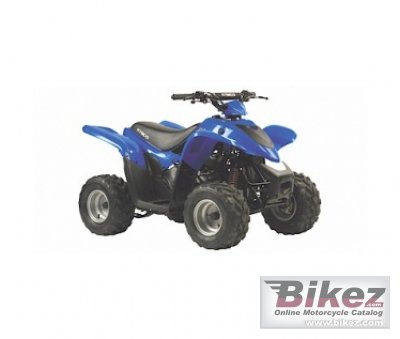

Kymco MXU 50 |
|
Model year
|
2009 |
|
Category
|
ATV |
|
Rating
|
3.2 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
49.0 ccm (2.99 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power output
|
4.5 HP (3.3 kW)) @ 6000 RPM |
|
Compression
|
10.0:1 |
|
Bore x stroke
|
39.0 x 41.0 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
C.D.I. |
|
Cooling system
|
Air |
|
Transmission type
|
Belt (final drive) |
|
Clutch
|
Wet, multiplate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
SP pipe |
|
Front suspension
|
Single A-Arm |
|
Front wheel travel
|
88 mm (3.5 inches) |
|
Rear suspension
|
Unit swing |
|
Rear wheel travel
|
89 mm (3.5 inches) |
|
Front tire
|
21/7-10 |
|
Rear tire
|
22/10-10 |
|
Front brakes
|
Expanding brake (drum brake) |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
100.0 kg (220.5 pounds) |
|
Power/weight ratio
|
0.0450 HP/kg |
|
Seat height
|
750 mm (29.5 inches) If adjustable, lowest setting. |
|
Overall height
|
1010 mm (39.8 inches) |
|
Overall length
|
1786 mm (70.3 inches) |
|
Overall width
|
958 mm (37.7 inches) |
|
Ground clearance
|
158 mm (6.2 inches) |
|
Wheelbase
|
1105 mm (43.5 inches) |
|
Fuel capacity
|
8.10 litres (2.14 US gallons) |
|
Other specifications |
|
Color options
|
Red/black |
|
Starter
|
Electric & kick |
|
Comments
|
Made in Taiwan. |
