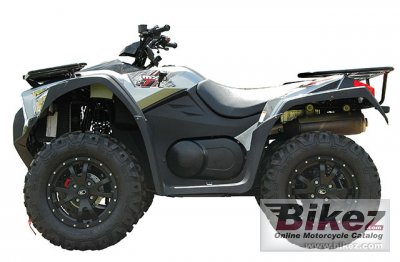

Kymco MXU 500i LE 20132013 Kymco MXU 500i LE specifications, pictures, reviews and rating |
| Kymco's profilation of this bike |
| The MXU 500i LE is based on the newly designed MXU 500i, but comes with limited edition amenities that turn the standard ATV into a slick trail and utility ready 4x4. The MXU 500i LE is available in Limited Edition Metallic Silver Paint. |
| General information | |
|---|---|
| Model name | Kymco MXU 500i LE |
| Model year | 2013 |
| Category | ATV |
| Price as new | US$ 8299. MSRP depends on country, taxes, accessories, etc. |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 498.5 ccm (30.42 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 47.6 HP (34.8 kW)) @ 6500 RPM |
| Torque | 40.0 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 5500 RPM |
| Compression | 10.5:1 |
| Bore x stroke | 92.0 x 75.0 mm (3.6 x 3.0 inches) |
| Fuel system | Injection |
| Fuel control | Overhead Cams (OHC) |
| Ignition | CDI |
| Cooling system | Liquid |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Dual A-Arm |
| Rear suspension | Independent |
| Front tire | 25/8-12 |
| Rear tire | 25/10-12 |
| Front brakes | Double disc |
| Diameter | 190 mm (7.5 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Black Aluminum Alloy Wheels |
| Physical measures and capacities | |
| Dry weight | 305.0 kg (672.4 pounds) |
| Power/weight ratio | 0.1561 HP/kg |
| Seat height | 890 mm (35.0 inches) If adjustable, lowest setting. |
| Overall height | 1313 mm (51.7 inches) |
| Overall length | 2203 mm (86.7 inches) |
| Overall width | 1223 mm (48.1 inches) |
| Wheelbase | 1293 mm (50.9 inches) |
| Fuel capacity | 17.00 litres (4.49 US gallons) |
| Other specifications | |
| Color options | Metallic Silver. |
| Starter | Electric |
| Instruments | Backlit Digital Dash (clock, mph, trip, fuel, odometer) |
| Carrying capacity | Heavy-Duty Front and Rear Equipment Racks |
| Factory warranty | One-Year Limited Factory Warranty |
| Comments | 3,000-lb Winch |
