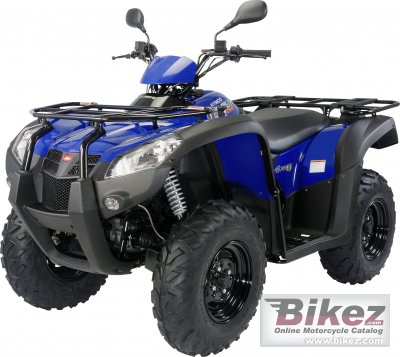

| Kymco's profilation of this bike |
| The MXU 500RL is the ultimate workhorse of the KYMCO ATV range. Powered by an impressive liquid-cooled 499cc four-stroke engine, this heavy-duty machine benefits from many significant features including a switchable 2wd-4wd function, fully automatic high/low ratio gearbox with reverse gear, adjustable suspension, electric and pull start, digital display, auto-locking front differential, and dual purpose tyres. |
|
General information |
|
Model name
|
Kymco MXU 500 RL |
|
Year model
|
2011 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
498.0 ccm (30.39 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Effect
|
24.1 HP (17.6 kW)) @ 5500 RPM |
|
Top speed
|
72.4 km/h (45.0 mph) |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
C.D.I. |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Shaft drive (cardan) (final drive) |
|
Driveline
|
High/Low Gearbox With Reverse. Selectable 2 or 4 Wheel Drive. Front Differential Lock. |
|
Emission details
|
Euro 2 |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel |
|
Front suspension
|
Adjustable Dampers |
|
Rear suspension
|
Adjustable Dampers |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc |
|
Rear brakes
|
Single disc |
|
Physical measures and capacities |
|
Dry weight
|
300.0 kg (661.4 pounds) |
|
Power/weight ratio
|
0.0805 HP/kg |
|
Seat height
|
848 mm (33.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2200 mm (86.6 inches) |
|
Overall width
|
1223 mm (48.1 inches) |
|
Other specifications |
|
Color options
|
Red |
|
Starter
|
Electric & kick |
|
Instruments
|
Digital |
|
Carrying capacity
|
Front and Rear Carriers. Tow Hitch Capacity 454kg. |
