| Kymco's profilation of this bike |
| When you’re looking for the most exceptional value in an ATV available today, look no further than the MXU 500. The MXU 500 incorporates a totally new redesigned chassis with anti-sway bar and class leading independent front and rear suspension for precise handling in the most extreme terrain. |
|
General information |
|
Model
|

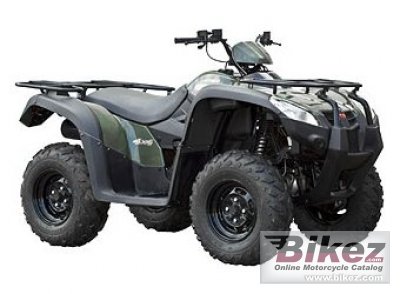

Kymco MXU 500 |
|
Year
|
2013 |
|
Category
|
ATV |
| Price as new | US$ 5699. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Displacement
|
498.5 ccm (30.42 cubic inches) |
|
Engine type
|
Single cylinder, four-stroke |
|
Power
|
18.0 HP (13.1 kW)) @ 5500 RPM |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
92.0 x 75.0 mm (3.6 x 3.0 inches) |
|
Fuel system
|
Carburettor |
|
Ignition
|
CDI |
|
Lubrication system
|
Wet sump |
|
Cooling system
|
Liquid |
|
Gearbox
|
Automatic |
|
Transmission type
|
Belt (final drive) |
|
Driveline
|
Automatic CVT w/forward, neutral, reverse and park. 2WD/4WD. |
|
Chassis, suspension, brakes and wheels |
|
Front suspension
|
Dual A-arm |
|
Rear suspension
|
Independent dual A-arm |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Single disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
306.0 kg (674.6 pounds) |
|
Power/weight ratio
|
0.0588 HP/kg |
|
Seat height
|
848 mm (33.4 inches) If adjustable, lowest setting. |
|
Overall length
|
2230 mm (87.8 inches) |
|
Overall width
|
1223 mm (48.1 inches) |
|
Wheelbase
|
1293 mm (50.9 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Other specifications |
|
Color options
|
Green, Red |
|
Starter
|
Electric |
|
Instruments
|
Backlit Digital Dash (clock, mph, trip, fuel, odometer) |
|
Carrying capacity
|
Heavy-Duty Front and Rear Equipment Racks |
|
Factory warranty
|
One-Year Limited Factory Warranty |
|
Comments
|
On Demand 2WD/4WD. C.A.R.B. Certified with USFS-Approved Spark Arrestor. Made in Taiwan. |
