| Kymco's profilation of this bike |
| Classed as quadricycles, the KYMCO range of Road Legal quads are registered as a Private Light Goods Vehicle and qualify for one of the lowest bands of Road Fund Licence. They can also be registered as a Special Concessionary Vehicle if used in an agricultural/horticultural / forestry environment, where they will benefit from zero-rated Road Tax.
|
| General information |
|---|

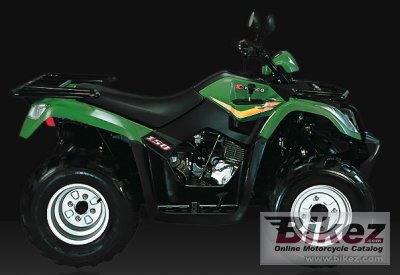

| Model: | Kymco MXU 150 RL |
| Year: | 2012 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 151.00 ccm (9.21 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Power: | 9.86 HP (7.2 kW)) @ 7500 RPM |
| Top speed: | 64.4 km/h (40.0 mph) |
| Fuel system: | Carburettor |
| Fuel control: | Overhead Cams (OHC) |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Driveline: | CVT automatic, reverse |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Tubular steel |
| Front suspension: | Adjustable dampers |
| Front tyre: | 21/7-10 |
| Rear tyre: | 22/10-10 |
| Front brakes: | Expanding brake (drum brake) |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 174.0 kg (383.6 pounds) |
| Power/weight ratio: | 0.0567 HP/kg |
| Seat height: | 750 mm (29.5 inches) If adjustable, lowest setting. |
| Overall length: | 1,775 mm (69.9 inches) |
| Overall width: | 950 mm (37.4 inches) |
| Other specifications |
|---|
| Color options: | Green |
| Starter: | Electric & kick |
| Carrying capacity: | Front and Rear Carriers. Tow Hitch Capacity 150kg. |
| Factory warranty: | 2 Year Warranty |
