| Kymco's profilation of this bike |
| The new MXU 500i DX upgrade passenger seat to come with an additional deluxe seat parts, a moveable seat pad with comfortable back seat to upscale the satisfy of riding with two people. Also, the luxurious painting and 14 inch of rim enhance the delicate quality. |
|
General information |
|
Motorcycle name
|

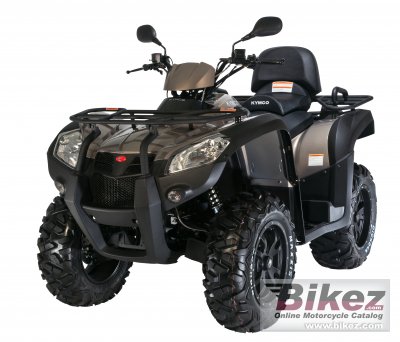

Kymco MXU500i DX |
|
Year of manufacture
|
2012 |
|
Type
|
ATV |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
498.5 ccm (30.42 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
47.6 HP (34.8 kW)) @ 6500 RPM |
|
Torque
|
40.0 Nm (4.1 kgf-m or 29.5 ft.lbs) @ 5500 RPM |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
92.0 x 75.0 mm (3.6 x 3.0 inches) |
|
Fuel system
|
Injection |
|
Fuel control
|
Overhead Cams (OHC) |
|
Ignition
|
CDI |
|
Cooling system
|
Liquid |
|
Transmission type
|
Belt (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Front tire
|
25/8-12 |
|
Rear tire
|
25/10-12 |
|
Front brakes
|
Double disc |
|
Diameter
|
190 mm (7.5 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Dry weight
|
305.0 kg (672.4 pounds) |
|
Power/weight ratio
|
0.1561 HP/kg |
|
Seat height
|
890 mm (35.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1313 mm (51.7 inches) |
|
Overall length
|
2203 mm (86.7 inches) |
|
Overall width
|
1223 mm (48.1 inches) |
|
Wheelbase
|
1293 mm (50.9 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Other specifications |
|
Color options
|
Champagne |
|
Starter
|
Electric |
