| General moped information |
|---|

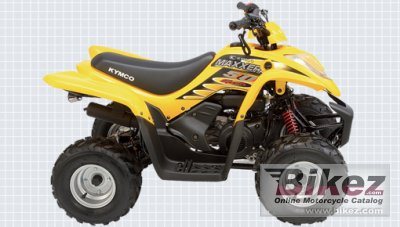

| Model: | Kymco Maxxer 50 |
| Year: | 2010 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 49.00 ccm (2.99 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 3.90 HP (2.8 kW)) @ 6000 RPM |
| Compression: | 7.2:1 |
| Bore x stroke: | 39.0 x 41.0 mm (1.5 x 1.6 inches) |
| Fuel control: | Overhead Cams (OHC) |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Clutch: | Wet, multiplate |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | SP pipe |
| Front suspension: | Single A-Arm |
| Front wheel travel: | 71 mm (2.8 inches) |
| Rear suspension: | Unit swing |
| Rear wheel travel: | 74 mm (2.9 inches) |
| Front tyre: | 16/8-7 |
| Rear tyre: | 16/8-7 |
| Front brakes: | Expanding brake (drum brake) |
| Front brakes diameter: | 85 mm (3.3 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 130 mm (5.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 100.0 kg (220.5 pounds) |
| Power/weight ratio: | 0.0390 HP/kg |
| Seat height: | 630 mm (24.8 inches) If adjustable, lowest setting. |
| Overall height: | 900 mm (35.4 inches) |
| Overall length: | 1,385 mm (54.5 inches) |
| Ground clearance: | 75 mm (3.0 inches) |
| Wheelbase: | 900 mm (35.4 inches) |
| Fuel capacity: | 6.80 litres (1.80 gallons) |
| Other specifications |
|---|
| Color options: | Yellow |
| Starter: | Electric & kick |
| Comments: | Kymco is made by Kwang Yang Motor Company, Taiwan. |
