Kymco Maxxer 50 20092009 Kymco Maxxer 50 specifications, pictures, reviews and rating |

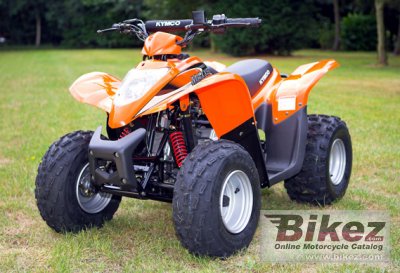

 2009 Kymco Maxxer 50. Picture credits - Kymco. Submit more pictures. |
| General moped information | |
|---|---|
| Model | Kymco Maxxer 50 |
| Year | 2009 |
| Category | ATV |
| Rating | 3.1 Check out the detailed rating of reliability, maintenance costs, value for money, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 49.0 ccm (2.99 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Power | 3.9 HP (2.8 kW)) @ 6000 RPM |
| Compression | 7.2:1 |
| Bore x stroke | 39.0 x 41.0 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Ignition | C.D.I. |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Frame type | SP pipe |
| Front suspension | Single A-Arm |
| Front wheel travel | 71 mm (2.8 inches) |
| Rear suspension | Unit swing |
| Rear wheel travel | 74 mm (2.9 inches) |
| Front tire | 16/8-7 |
| Rear tire | 16/8-7 |
| Front brakes | Expanding brake (drum brake) |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 100.0 kg (220.5 pounds) |
| Power/weight ratio | 0.0390 HP/kg |
| Seat height | 630 mm (24.8 inches) If adjustable, lowest setting. |
| Overall height | 900 mm (35.4 inches) |
| Overall length | 1385 mm (54.5 inches) |
| Overall width | 820 mm (32.3 inches) |
| Ground clearance | 75 mm (3.0 inches) |
| Wheelbase | 900 mm (35.4 inches) |
| Fuel capacity | 6.80 litres (1.80 US gallons) |
| Other specifications | |
| Color options | Yellow |
| Starter | Electric & kick |
| Comments | Made in Taiwan. |
