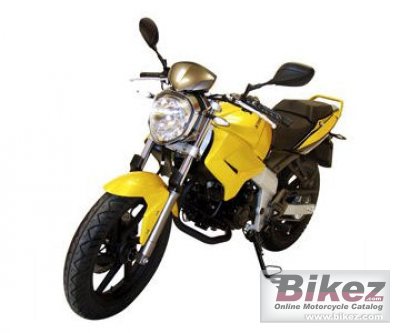

| Kymco's profilation of this bike |
| Wow - what a fantastic looking machine. Revised and up-rated 4 stroke, smoother, more refined performance plus double beam cast aluminium alloy chassis weighing under 9kg! |
|
General information |
|
Motorcycle name
|
Kymco KR Naked 125 |
|
Year of manufacture
|
2010 |
|
Type
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
124.1 ccm (7.57 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Output
|
12.8 HP (9.3 kW)) @ 10000 RPM |
|
Torque
|
9.9 Nm (1.0 kgf-m or 7.3 ft.lbs) |
|
Bore x stroke
|
56.5 x 49.5 mm (2.2 x 1.9 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor |
|
Fuel control
|
Overhead Cams (OHC) |
|
Cooling system
|
Air |
|
Gearbox
|
5-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multi-plate clutch in oil bath |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Aluminium frame |
|
Front suspension
|
Hydraulic forks |
|
Rear suspension
|
Single rear damper, preload adjustable . |
|
Front tire
|
110/80-17 |
|
Rear tire
|
140/70-17 |
|
Front brakes
|
Single disc |
|
Diameter
|
276 mm (10.9 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
130.0 kg (286.6 pounds) |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Overall length
|
2057 mm (81.0 inches) |
|
Overall width
|
790 mm (31.1 inches) |
|
Ground clearance
|
170 mm (6.7 inches) |
|
Wheelbase
|
1355 mm (53.3 inches) |
|
Fuel capacity
|
13.50 litres (3.57 US gallons) |
|
Other specifications |
|
Color options
|
Yellow |
|
Starter
|
Electric & kick |
