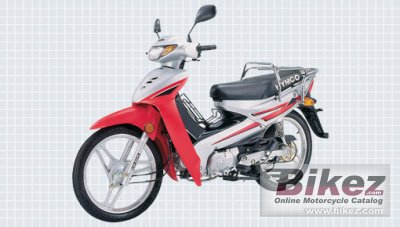

Kymco Active SR 125 E3 20102010 Kymco Active SR 125 E3 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Kymco Active SR 125 E3 |
| Year | 2010 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 124.0 ccm (7.57 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power | 8.0 HP (5.9 kW)) @ 7500 RPM |
| Torque | 8.5 Nm (0.9 kgf-m or 6.3 ft.lbs) @ 6000 RPM |
| Compression | 9.0:1 |
| Bore x stroke | 54.0 x 54.0 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Ignition | CDI |
| Cooling system | Air |
| Gearbox | 4-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 105 mm (4.1 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 61 mm (2.4 inches) |
| Front tire | 2.50-17 |
| Rear tire | 2.75-17 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 97.0 kg (213.8 pounds) |
| Power/weight ratio | 0.0829 HP/kg |
| Overall height | 1085 mm (42.7 inches) |
| Overall length | 1995 mm (78.5 inches) |
| Overall width | 680 mm (26.8 inches) |
| Wheelbase | 1265 mm (49.8 inches) |
| Fuel capacity | 3.50 litres (0.92 US gallons) |
| Other specifications | |
| Color options | Red/white |
| Starter | Electric & kick |
