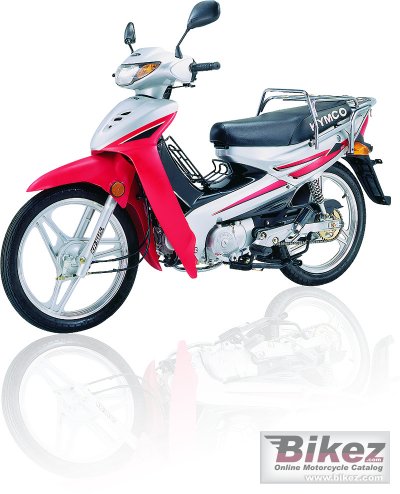

Kymco Active 110 20092009 Kymco Active 110 specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Kymco Active 110 |
| Year of manufacture | 2009 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 107.0 ccm (6.53 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 6.4 HP (4.7 kW)) @ 7000 RPM |
| Torque | 7.5 Nm (0.8 kgf-m or 5.5 ft.lbs) @ 5000 RPM |
| Compression | 8.0:1 |
| Bore x stroke | 52.4 x 49.5 mm (2.1 x 1.9 inches) |
| Fuel system | Carburettor |
| Fuel control | Overhead Cams (OHC) |
| Ignition | CDI |
| Gearbox | 4-speed |
| Transmission type | Shaft drive (cardan) (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Telescopic fork |
| Front wheel travel | 105 mm (4.1 inches) |
| Rear suspension | Single shock |
| Rear wheel travel | 61 mm (2.4 inches) |
| Front tire | 2.50-17 |
| Rear tire | 2.75-17 |
| Front brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Rear brakes | Expanding brake (drum brake) |
| Diameter | 110 mm (4.3 inches) |
| Physical measures and capacities | |
| Dry weight | 94.0 kg (207.2 pounds) |
| Power/weight ratio | 0.0685 HP/kg |
| Overall length | 1995 mm (78.5 inches) |
| Wheelbase | 1275 mm (50.2 inches) |
| Fuel capacity | 3.50 litres (0.92 US gallons) |
| Other specifications | |
| Starter | Electric & kick |
| Comments | Kymco is made by Kwang Yang Motor Company, Taiwan. |
