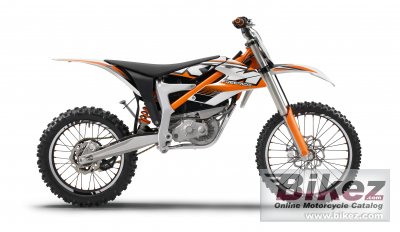

| KTM's profilation of this bike |
| It´s time for a new offroad motorcycle segment! It’s time for more motorcycle freedom! It’s time for the Freeride E! With the revolutionary Freeride E, KTM takes lightweight, noise-free and agile offroad motorcycles where enduro riding was previously impossible: into the city! With 42 Nm of torque, up to 22 kW (30 hp) peak power and uninterrupted acceleration, it´s just as sporty as other KTM bikes. |
|
General information |
|
Model
|
KTM Freeride E |
|
Year
|
2012 |
|
Category
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine type
|
Electric |
|
Engine details
|
Permanent magnet synchronous motor in a disc armature design. |
|
Power
|
29.5 HP (21.5 kW)) |
|
Torque
|
42.0 Nm (4.3 kgf-m or 31.0 ft.lbs) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Perimeter steel-aluminium composite frame. High-strength polymide / ABS plastic subframe. |
|
Rake (fork angle)
|
23.0° |
|
Front suspension
|
WP Suspension PDS shock |
|
Front wheel travel
|
250 mm (9.8 inches) |
|
Rear suspension
|
WP Suspension PDS shock |
|
Rear wheel travel
|
260 mm (10.2 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
95.0 kg (209.4 pounds) |
|
Power/weight ratio
|
0.3105 HP/kg |
|
Seat height
|
910 mm (35.8 inches) If adjustable, lowest setting. |
|
Ground clearance
|
340 mm (13.4 inches) |
|
Wheelbase
|
1418 mm (55.8 inches) |
|
Other specifications |
|
Color options
|
Orange/white/black |
|
Starter
|
Electric |
|
Comments
|
Traction battery: Lithium-ion (easily removed). Rated voltage: 300 V. Charging time: 1.5 h. |
