| KTM's profilation of this bike |
| With a new engine, fuel injection system and smaller displacement, new bodywork, new chassis - in fact, a whole new concept. What with the first Grand Prix victory and racing to the top of the overall standings in the MX1 class after only two races, maybe even the beginning of a new era in motocross ... |
|
General information |
|
Motorcycle name
|

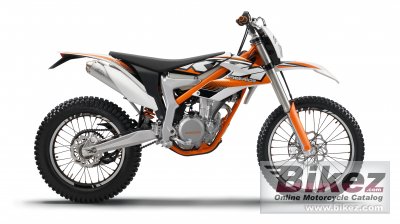

KTM Freeride 350 |
|
Year model
|
2012 |
|
Type
|
Enduro / offroad |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
349.7 ccm (21.34 cubic inches) |
|
Type of engine
|
Single cylinder, four-stroke |
|
Compression
|
13.5:1 |
|
Bore x stroke
|
88.0 x 57.5 mm (3.5 x 2.3 inches) |
|
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
|
Lubrication system
|
Forced oil lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch / hydraulically operated |
|
Driveline
|
14:50. Primary gear ratio 24:73. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Perimeter steel-aluminium composite frame |
|
Rake (fork angle)
|
23.0° |
|
Front suspension
|
WP USD 48 mm (1.89 in) |
|
Front wheel travel
|
250 mm (9.8 inches) |
|
Rear suspension
|
WP Suspension 4618 PDS DCC |
|
Rear wheel travel
|
260 mm (10.2 inches) |
|
Front tire
|
80/100-21 |
|
Rear tire
|
110/90-19 |
|
Front brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
210 mm (8.3 inches) |
|
Physical measures and capacities |
|
Dry weight
|
99.5 kg (219.4 pounds) |
|
Seat height
|
895 mm (35.2 inches) If adjustable, lowest setting. |
|
Ground clearance
|
325 mm (12.8 inches) |
|
Wheelbase
|
1418 mm (55.8 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Color options
|
Orange/white |
|
Starter
|
Electric |
