General information |
Model name
|

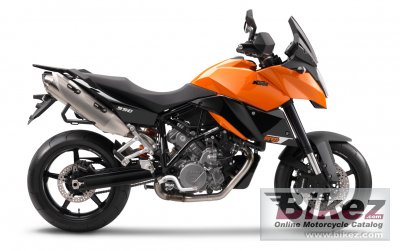

KTM 990 Supermoto T |
Year model
|
2012 |
Type
|
Super motard |
Rating
|
3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
Engine and transmission |
Engine size
|
999.0 ccm (60.96 cubic inches) |
Type of engine
|
V2, four-stroke |
Effect
|
114.0 HP (83.2 kW)) @ 4000 RPM |
Torque
|
97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 7000 RPM |
Compression
|
11.5:1 |
Bore x stroke
|
101.0 x 62.4 mm (4.0 x 2.5 inches) |
Fuel system
|
Injection. Keihin EFI |
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
Ignition
|
Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
Lubrication system
|
Dry-sump lubrication with 2 rotor pumps |
Cooling system
|
Liquid |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
Wet multi-disc clutch / hydraulically operated |
Driveline
|
17:41. Primary drive: 35:67. |
Chassis, suspension, brakes and wheels |
Frame type
|
Tubular space frame made from chrome molybdenum steel, powder-coated |
Rake (fork angle)
|
24.4° |
Trail
|
109 mm (4.3 inches) |
Front suspension
|
WP Suspension Up Side Down 4860 ROMA PA |
Front wheel travel
|
160 mm (6.3 inches) |
Rear suspension
|
WP Suspension 4618 BAVP DCC |
Rear wheel travel
|
180 mm (7.1 inches) |
Front tire
|
120/70-17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc. ABS.Four piston fixed-caliper, radial bolted, brake |
Diameter
|
305 mm (12.0 inches) |
Rear brakes
|
Single disc. ABS. Two-piston brake caliper; fixed brake disc |
Diameter
|
240 mm (9.4 inches) |
Physical measures and capacities |
Dry weight
|
198.0 kg (436.5 pounds) |
Power/weight ratio
|
0.5758 HP/kg |
Seat height
|
855 mm (33.7 inches) If adjustable, lowest setting. |
Ground clearance
|
195 mm (7.7 inches) |
Wheelbase
|
1505 mm (59.3 inches) |
Fuel capacity
|
19.00 litres (5.02 US gallons) |
Other specifications |
Color options
|
Black/orange |
Starter
|
Electric |
Comments
|
Also called KTM 990 SM T |
