| KTM's profilation of this bike |
| The legendarily light and compact LC8 twin-cylinder ensures compromise-free propulsion and provides the basis for the unbelievable agility of the Travel Supermoto. Depending on the mood of the rider, it provides amazing power in all circumstances or gentle, refined strength for superior riding at a comfortable speed.
|
|
General information |
|
Motorcycle name
|

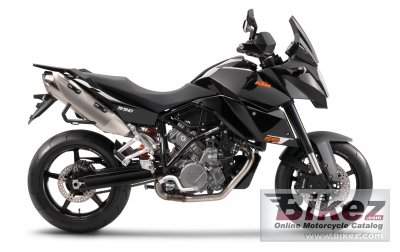

KTM 990 Supermoto T |
|
Year
|
2011 |
|
Category
|
Super motard |
|
Rating
|
3.5 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
999.0 ccm (60.96 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
114.0 HP (83.2 kW)) @ 9000 RPM |
|
Torque
|
97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 7000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
101.0 x 62.4 mm (4.0 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressure lubrication with 2 pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
17:41. Primary drive: 35:67. |
|
Exhaust system
|
Twin stainless-steel silencer with regulated catalytic converters |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder-coated. Subframe: Aluminium. |
|
Rake (fork angle)
|
24.4° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
WP USD 48 mm (1.89 in) |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
WP mono shock |
|
Rear wheel travel
|
210 mm (8.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Brembo four piston fixed-caliper, radial bolted, brake |
|
Diameter
|
305 mm (12.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Cast aluminium wheels 3.5 x 17in., 5.5 x 17in. |
|
Physical measures and capacities |
|
Dry weight
|
196.0 kg (432.1 pounds) |
|
Power/weight ratio
|
0.5816 HP/kg |
|
Seat height
|
855 mm (33.7 inches) If adjustable, lowest setting. |
|
Ground clearance
|
195 mm (7.7 inches) |
|
Wheelbase
|
1505 mm (59.3 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Other specifications |
|
Color options
|
Black/orange |
