| KTM's profilation of this bike |

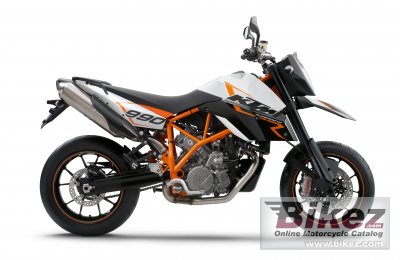

| Designed to push the limits further and further on the race track, the KTM 990 SM R is the most radical two-cylinder supermoto on the market. It is all the more surprising that town and city riding is at least as much fun as negotiating twisting roads on mountain passes. |
|
General information |
|
Model name
|
KTM 990 Supermoto R |
|
Year model
|
2011 |
|
Type
|
Super motard |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
999.0 ccm (60.96 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
114.0 HP (83.2 kW)) @ 9000 RPM |
|
Torque
|
97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 7000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
101.0 x 62.4 mm (4.0 x 2.5 inches) |
|
Fuel system
|
Injection. Keihin EFI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk clutch, hydraulically operated |
|
Driveline
|
17:41. Primary drive: 35:67. |
|
Exhaust system
|
Twin stainless-steel silencer with catalytic converters |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder-coated. Subframe: Aluminium. |
|
Rake (fork angle)
|
24.4° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
WP USD 48 mm (1.89 in) |
|
Front wheel travel
|
210 mm (8.3 inches) |
|
Rear suspension
|
WP mono shock |
|
Rear wheel travel
|
210 mm (8.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. Brembo four piston fixed-caliper, radial bolted, brake |
|
Diameter
|
305 mm (12.0 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
Forged aluminium wheels 3.5 x 17´´; 5.5 x 17´´ |
|
Physical measures and capacities |
|
Dry weight
|
189.0 kg (416.7 pounds) |
|
Power/weight ratio
|
0.6031 HP/kg |
|
Seat height
|
875 mm (34.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
195 mm (7.7 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Color options
|
Black/orange/white |
|
Starter
|
Electric |
