| KTM's profilation of this bike |
| Fully adjustable 48 WP chassis, ultralight chromium molybdenum tubular trellis frame, enhanced seat ergonomics for perfect drifts as well as “R”adial brake performance from Bembo all ensure pure pleasure in the curves. Out of the rut and into the race. |
|
General information |
|
Model name
|

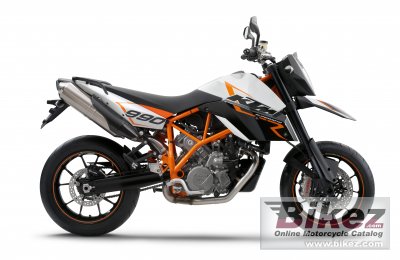

KTM 990 Supermoto R |
|
Year of manufacture
|
2010 |
|
Type
|
Super motard |
|
Rating
|
3.4 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
999.0 ccm (60.96 cubic inches) |
|
Type of engine
|
Twin, four-stroke |
|
Output
|
114.0 HP (83.2 kW)) @ 9000 RPM |
|
Torque
|
97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 7000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
101.0 x 62.4 mm (4.0 x 2.5 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Keihin EFI |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressure lubrication with 2 oil pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk clutch, hydraulically operated |
|
Exhaust system
|
Twin stainless-steel silencer with catalytic converters |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder-coated |
|
Rake (fork angle)
|
24.4° |
|
Trail
|
109 mm (4.3 inches) |
|
Front suspension
|
WP USD 48 mm fork |
|
Front wheel travel
|
160 mm (6.3 inches) |
|
Rear suspension
|
WP mono shock |
|
Rear wheel travel
|
180 mm (7.1 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
70/17-180 |
|
Front brakes
|
Double disc. 2 x Brembo four piston fixed-caliper, radially bolted |
|
Diameter
|
305 mm (12.0 inches) |
|
Rear brakes
|
Single disc. Brembo 2-piston floating caliper, brake disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
189.0 kg (416.7 pounds) |
|
Power/weight ratio
|
0.6031 HP/kg |
|
Seat height
|
875 mm (34.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
195 mm (7.7 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Color options
|
Gray/orange/black |
|
Starter
|
Electric |
