| KTM's profilation of this bike |

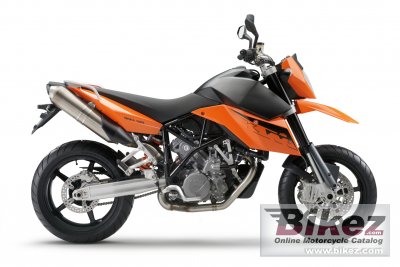

| With its self confident, bull-like appearance, the KTM 990 Supermoto manages to put on a show - even when on its stand. Set it in motion, and you’re practically unbeatable. |
|
General information |
|
Model
|
KTM 990 Supermoto |
|
Year of manufacture
|
2009 |
|
Type
|
Super motard |
|
Rating
|
3.8 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
999.0 ccm (60.96 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
114.0 HP (83.2 kW)) @ 9000 RPM |
|
Torque
|
97.0 Nm (9.9 kgf-m or 71.5 ft.lbs) @ 7000 RPM |
|
Bore x stroke
|
101.0 x 62.4 mm (4.0 x 2.5 inches) |
|
Fuel system
|
Injection. Keihin EFI, throttle valve Ø 48 mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Keihin |
|
Lubrication system
|
Pressure lubrication |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multi-disc clutch, operated hydraulically |
|
Exhaust system
|
Twin stainless-steel silencer with regulated catalytic converters |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular chromoly space frame, powder-coated |
|
Rake (fork angle)
|
24.9° |
|
Trail
|
110 mm (4.3 inches) |
|
Front suspension
|
WP USD, 48 mm |
|
Front wheel travel
|
275 mm (10.8 inches) |
|
Rear suspension
|
WP monoshock |
|
Rear wheel travel
|
265 mm (10.4 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc. 2 x Brembo four piston fixed-caliper, radially bolted |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Brembo 2-piston floating caliper, brake disc |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
191.0 kg (421.1 pounds) |
|
Power/weight ratio
|
0.5968 HP/kg |
|
Seat height
|
875 mm (34.4 inches) If adjustable, lowest setting. |
|
Ground clearance
|
195 mm (7.7 inches) |
|
Wheelbase
|
1510 mm (59.4 inches) |
|
Fuel capacity
|
19.00 litres (5.02 US gallons) |
|
Other specifications |
|
Color options
|
Orange |
|
Starter
|
Electric |
