KTM 990 Super Duke R 20122012 KTM 990 Super Duke R specifications, pictures, reviews and rating |

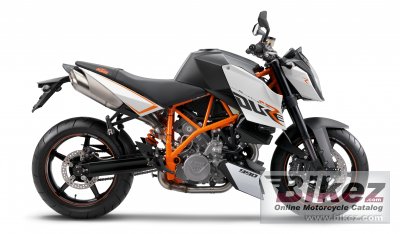

2012 KTM 990 Super Duke R. Picture credits - KTM. Submit more pictures. |
KTM's profilation of this bike |
If there´s ever been an uncompromising riding machine in its purest form then it´s the ultra-sporty 990 Super Duke R. With its muscle-flexing V2 and perfectly controllable power, it can be regarded as the ultimate scourge of the superbikes - and now there´s room for two! Its equally manoeuvrable and precise chassis is equipped with the most exclusive components - from the CNC-machined triple clamp to the steering damper or coated fork tubes. |
General information | |
---|---|
Model name | KTM 990 Super Duke R |
Model year | 2012 |
Category | Naked bike |
Rating | 3.5 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission | |
Displacement | 999.0 ccm (60.96 cubic inches) |
Engine type | V2, four-stroke |
Engine details | 75° V-twin |
Power output | 123.0 HP (89.8 kW)) @ 4000 RPM |
Torque | 100.0 Nm (10.2 kgf-m or 73.8 ft.lbs) @ 7000 RPM |
Compression | 11.5:1 |
Bore x stroke | 101.0 x 62.4 mm (4.0 x 2.5 inches) |
Fuel system | Injection. Keihin EFI with EPT (Electric Power Throttle) |
Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
Ignition | Contactless, controlled, fully electronic ignition system with digital ignition timing adjustment |
Lubrication system | Dry-sump lubrication with 2 rotor pumps |
Cooling system | Liquid |
Gearbox | 6-speed |
Transmission type | Chain (final drive) |
Clutch | Wet multi-disc clutch / hydraulically operated |
Driveline | 16:38. Primary drive: 35:67 |
Chassis, suspension, brakes and wheels | |
Frame type | Tubular space frame made from chrome molybdenum steel, powder-coated |
Rake (fork angle) | 22.7° |
Trail | 101 mm (4.0 inches) |
Front suspension | WP Suspension Up Side Down 4860 ROMA PA |
Front wheel travel | 135 mm (5.3 inches) |
Rear suspension | WP Suspension 4618 BAVP DCC |
Rear wheel travel | 150 mm (5.9 inches) |
Front tire | 120/70-17 |
Rear tire | 180/55-ZR17 |
Front brakes | Double disc. Radially mounted four-piston brake calipers; floating brake discs |
Diameter | 320 mm (12.6 inches) |
Rear brakes | Single disc. Two-piston brake caliper; fixed brake disc |
Diameter | 240 mm (9.4 inches) |
Physical measures and capacities | |
Dry weight | 186.0 kg (410.1 pounds) |
Power/weight ratio | 0.6613 HP/kg |
Seat height | 850 mm (33.5 inches) If adjustable, lowest setting. |
Ground clearance | 150 mm (5.9 inches) |
Wheelbase | 1450 mm (57.1 inches) |
Fuel capacity | 18.50 litres (4.89 US gallons) |
Other specifications | |
Color options | Black/white/orange |
Starter | Electric |
Update specs | Report missing specs or required updates. |
Further information | |
Insurance costs | Compare US insurance quotes from the nation's top providers. |
Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
Ask questions | Join the 12 KTM 990 Super Duke R discussion group or the general KTM discussion group. |
Related bikes | List related bikes for comparison of specs. |
Free motorcycle classifiedsClick here to sell a used 2012 KTM 990 Super Duke R or advertise any other MC for sale. You can list all available KTM 990 Super Duke R bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world. You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc. |
|
Rating sample for this KTM bike | |
Reliability for the 2012 KTM 990 Super Duke R: (78.7 out of 100) Click here for complete rating. You can also compare bikes. |
