| KTM's profilation of this bike |
| R stands for Race. |
|
General information |
|
Model name
|

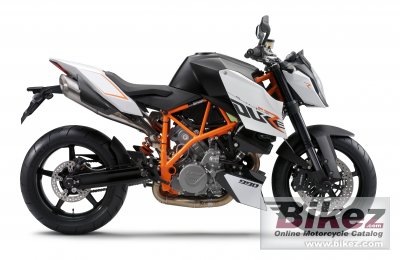

KTM 990 Super Duke R |
|
Year
|
2010 |
|
Category
|
Naked bike |
| Price as new | US$ 14390. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.4 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
999.0 ccm (60.96 cubic inches) |
|
Engine type
|
Twin, four-stroke |
|
Power
|
130.0 HP (94.9 kW)) |
|
Torque
|
101.7 Nm (10.4 kgf-m or 75.0 ft.lbs) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Lubrication system
|
Pressure lubrication with 2 Eaton pumps |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet mDouble disk clutch, operated hydraulically |
|
Exhaust system
|
Stainless steel silencer with regulated catalytic converter |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chromium-Molybdenum trellis frame, powder coated |
|
Rake (fork angle)
|
22.7° |
|
Trail
|
94 mm (3.7 inches) |
|
Front suspension
|
48mm WP USD fork |
|
Front wheel travel
|
135 mm (5.3 inches) |
|
Rear suspension
|
WP monoshock |
|
Rear wheel travel
|
160 mm (6.3 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc. 2 x Brembo four piston, radially bolted caliper |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. Brembo single-piston floating caliper |
|
Diameter
|
240 mm (9.4 inches) |
|
Physical measures and capacities |
|
Dry weight
|
185.0 kg (407.9 pounds) |
|
Power/weight ratio
|
0.7027 HP/kg |
|
Seat height
|
850 mm (33.5 inches) If adjustable, lowest setting. |
|
Ground clearance
|
150 mm (5.9 inches) |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Fuel capacity
|
18.50 litres (4.89 US gallons) |
|
Other specifications |
|
Color options
|
Black/white/orange |
